Home > All Collections > Electronics > FM serier power amplifier

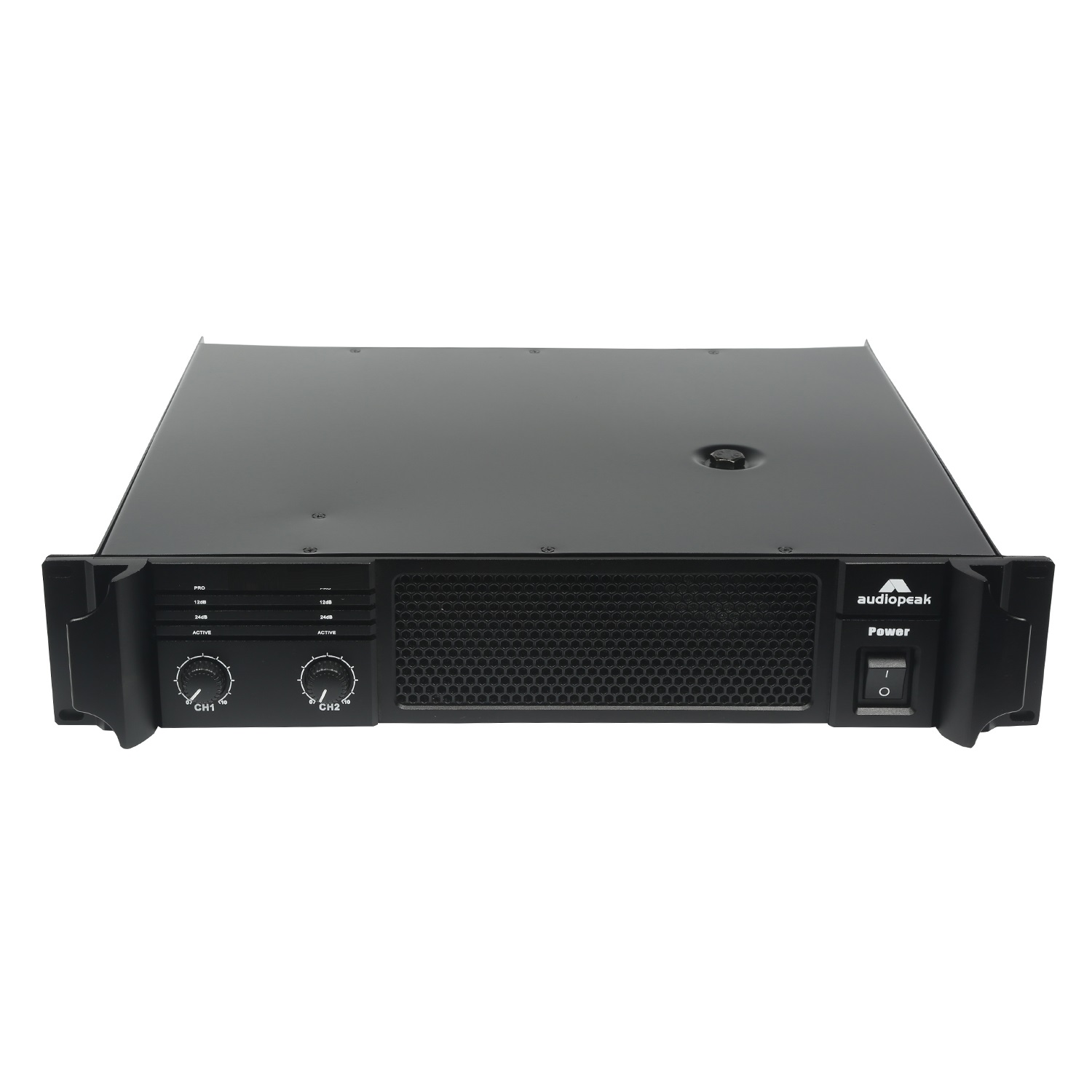

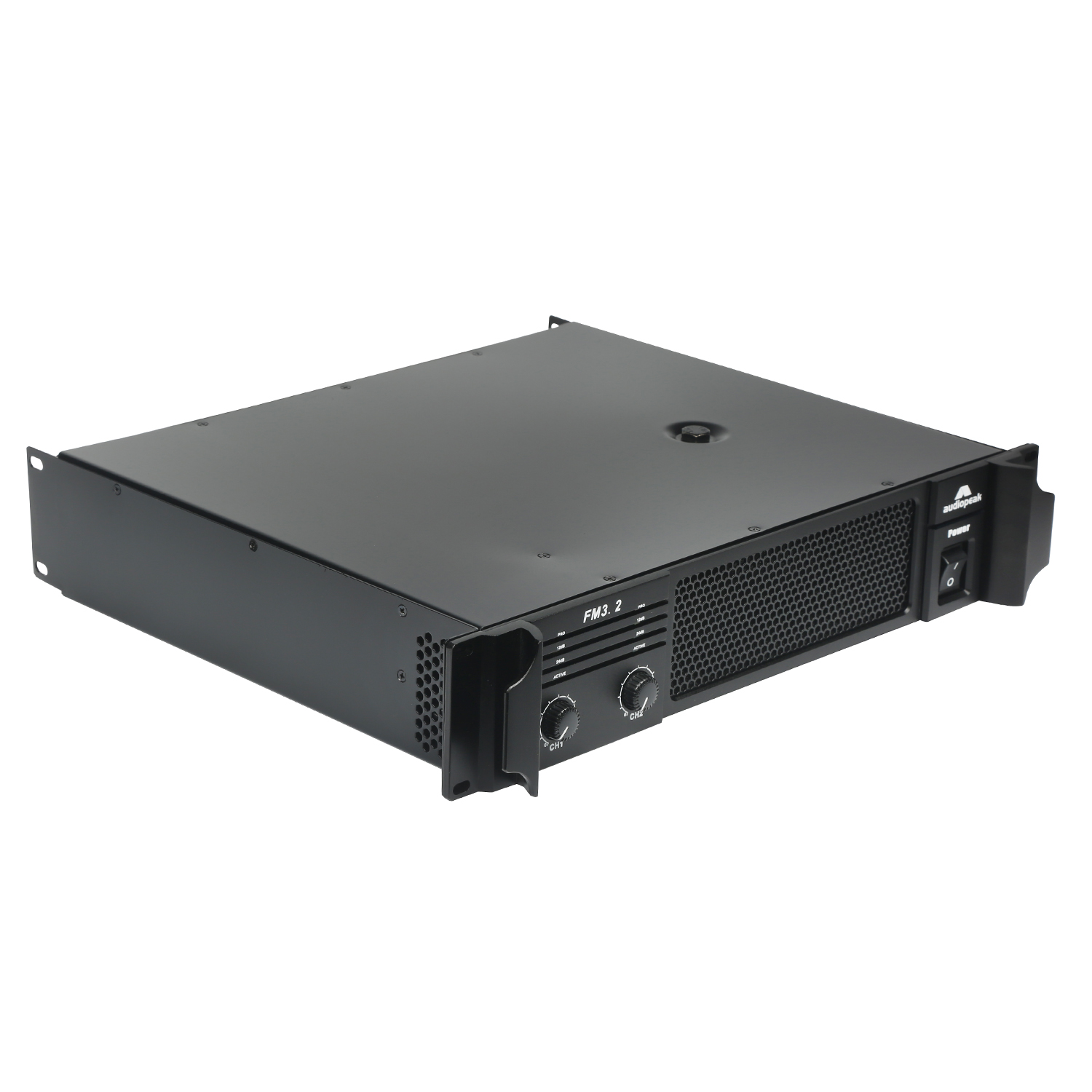

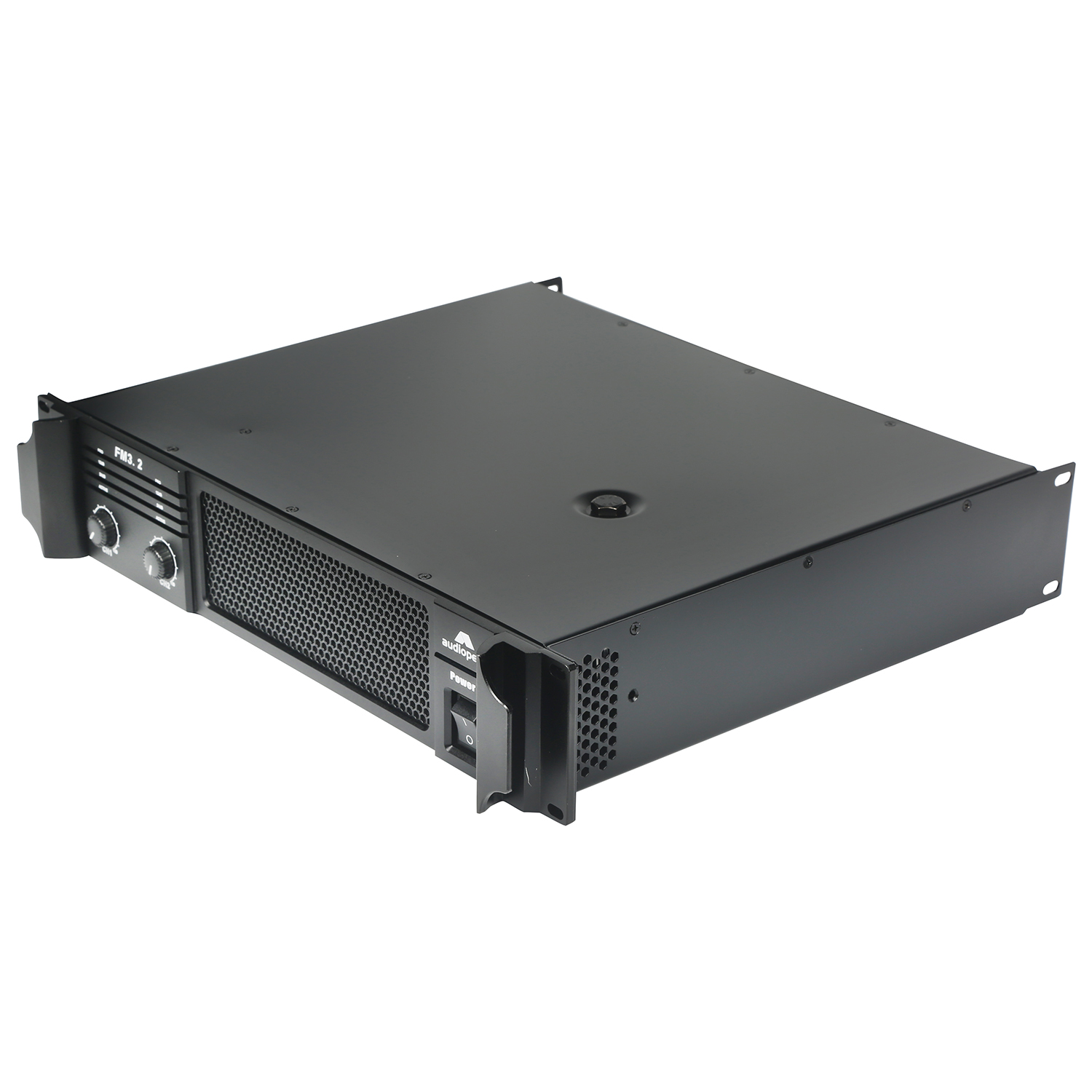

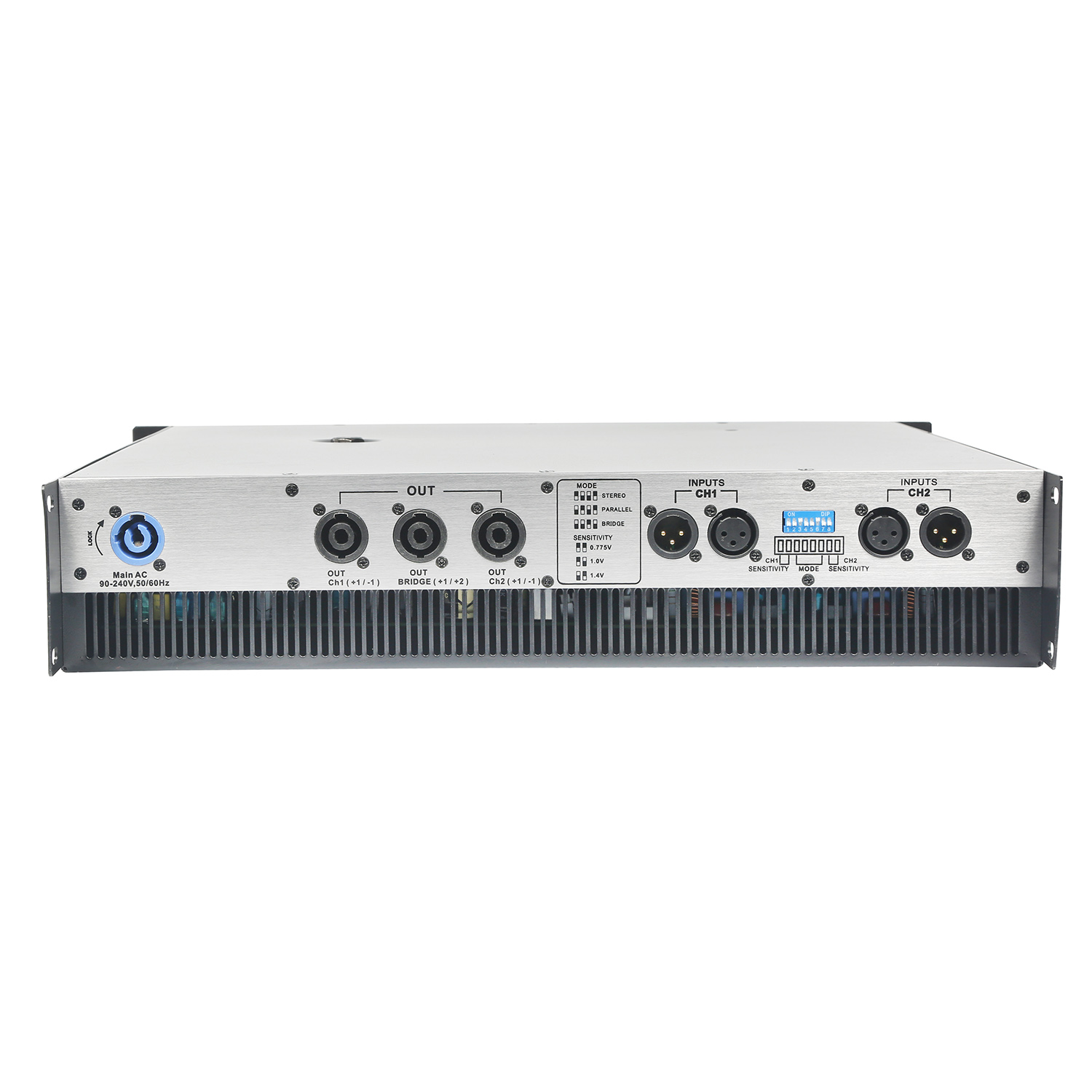

FM serier power amplifier

Name: FM serier power amplifier
Brand: Tinboo audio -Pro audio expert
Availability: InStock
Rating: 5 (1 reviews)

Features

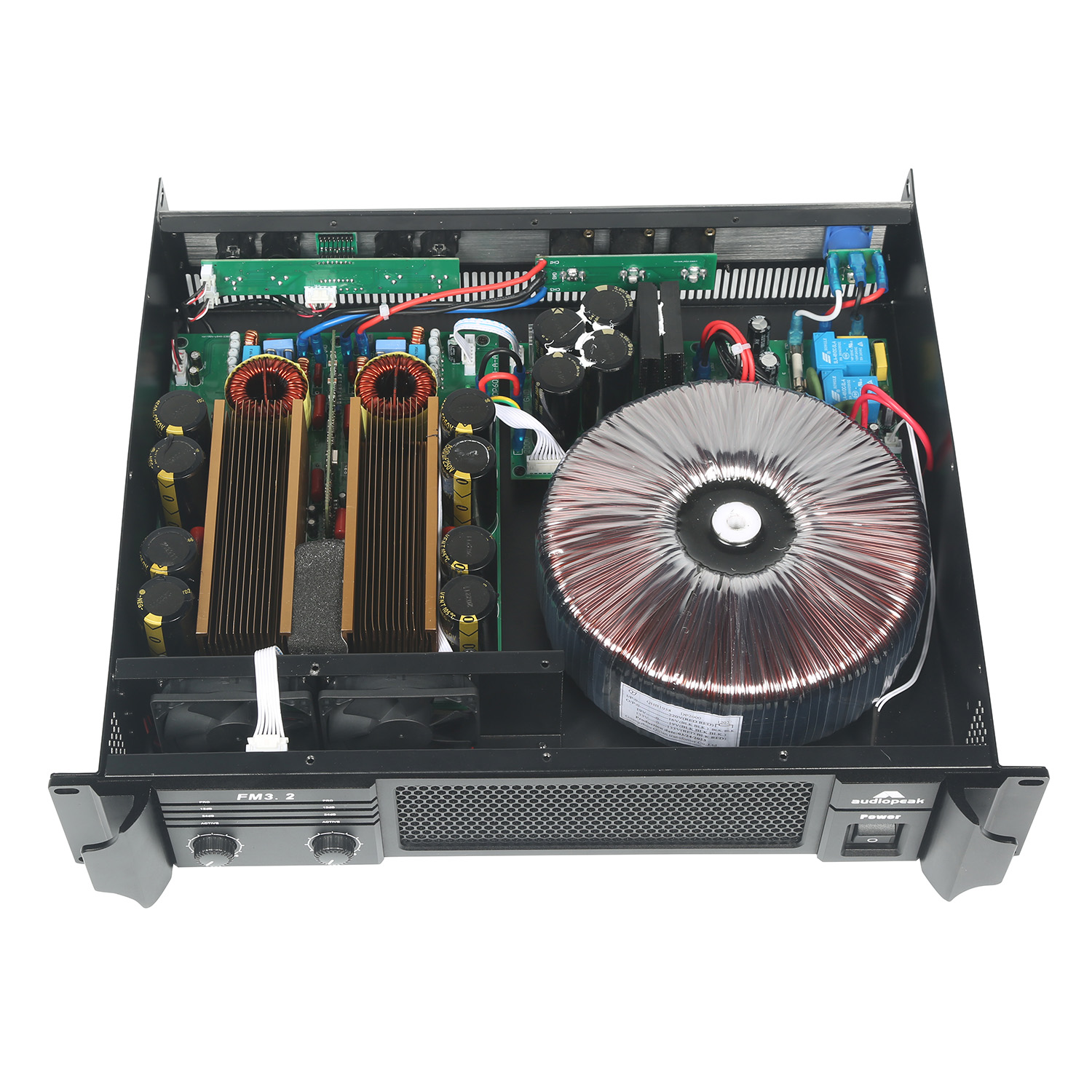

High-current toroidal transformers with high magnetic flux cores fordynamic range and low distortion at 4Ω
High efficient Class D amplifying circuit modules., work stably at 2ohm.
Intelligent low-noise variable speed fans ensure whole system cooled in continue hours .
Low THD and high damping factor for excellent sound quality.
High-quality glass epoxy, double-sided PTH PCBs, and super quality components

Applications

Small to large-sized touring and installed applications
Pub & restaurant, entertainment outlet
Theatres and live clubs
Houses of worship
Emergency evacuation
Excellent voice amplification, live music reproduction System

Get A Quote

OVERVIEW

With years of in-depth dedication to the professional audio industry, Audiopeak upholds the core mission of"Restoring the Authenticity of Original Sound, Empowering Every Auditory Feast" . We are committed to delivering high-quality, highly reliable professional audio products and integrated sound reinforcement solutions for global users. Always staying true to our acoustic aspiration, we integrate cutting-edge technology with exquisite craftsmanship. Every procedure, from product R D and component selection to production and testing, is subject to stringent quality control, aiming to deliver the purest and most immersive sound experience.

Specifications
Download

Model	FM1.2	FM1.5	FM2.2	FM3.2
STEREO MODE:80	2×1200W	2×1500W	2×2000W	2×3000W
STEREO MODE:40	2×2000W	2×2500W	2×3500W	2×5800W
STEREO MODE:20	2×2500W	2×3000W	2×4000W	2×6000W
BRIDGEMODE:80	4000W	5000W	7000W	11000W
Slew rate(at 1 kHz)	>70V/μs
Input sensitivity	0.775V 1.0V/ 1.414V
THD	<0.5%
Crosstalk	-70dB
Frequency response	20Hz-20Khz(±0.5dB)
Input impedance	Balance 20kohm,unbalance 10kohm
Damping Factor	700:1
Signal to noise ratio	>105dB
Power Requirements	180V-240V/60Hz
Protection	over heat/thermal output power control/long termoutput power control output short-circuit/overload protection/DC protection
Cartoon packing	500×450×90
Netweight(KG)	16	18	22	32

123

The Sound That Defines a Successful Show

In a real live event,a sound system must do more than simply be loud. It needs to deliver:Clear and natural vocalsEven sound coverage across the audienceStrong and controlled low frequency performanceStable output for long working hoursThat is the value of a professional audio system. Whether for concerts, music festivals, touring events, or large-scale performances,consistent and controlled sound coverage is the key to a successful show.

Where Sound Becomes Experience

When the lights come onand the music begins, the audience is not just listening to sound —they are feeling the energy. Clear vocals that reach every corner,rich mids that bring music to life,and deep, powerful bass that hits the crowd with impact. A professional sound system does more than play music.It creates the atmosphere, drives the emotion,and turns a performance into a real experience. We do not just provide audio equipment.We provide sound solutions that make the whole event come alive.
