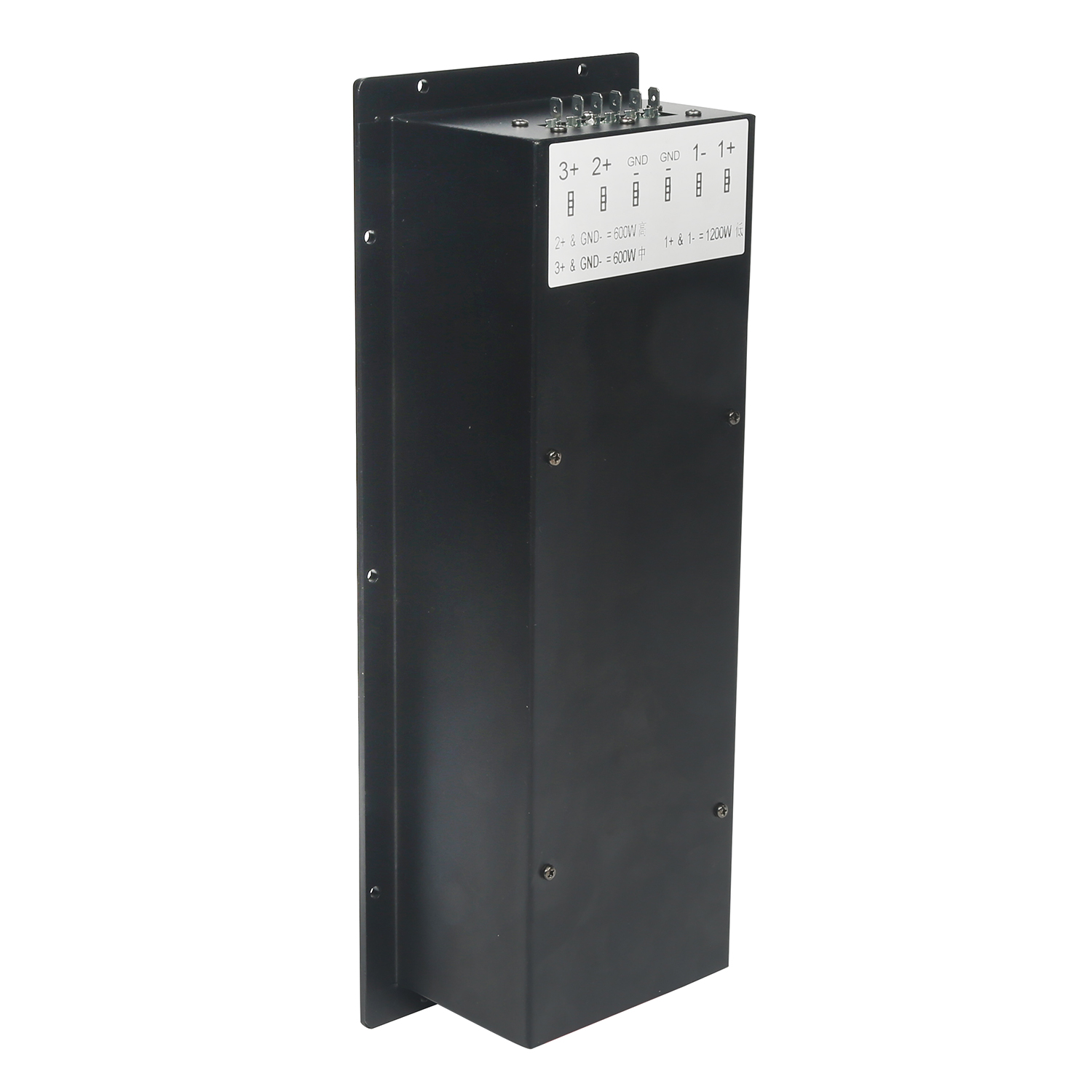

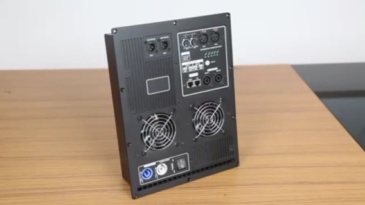

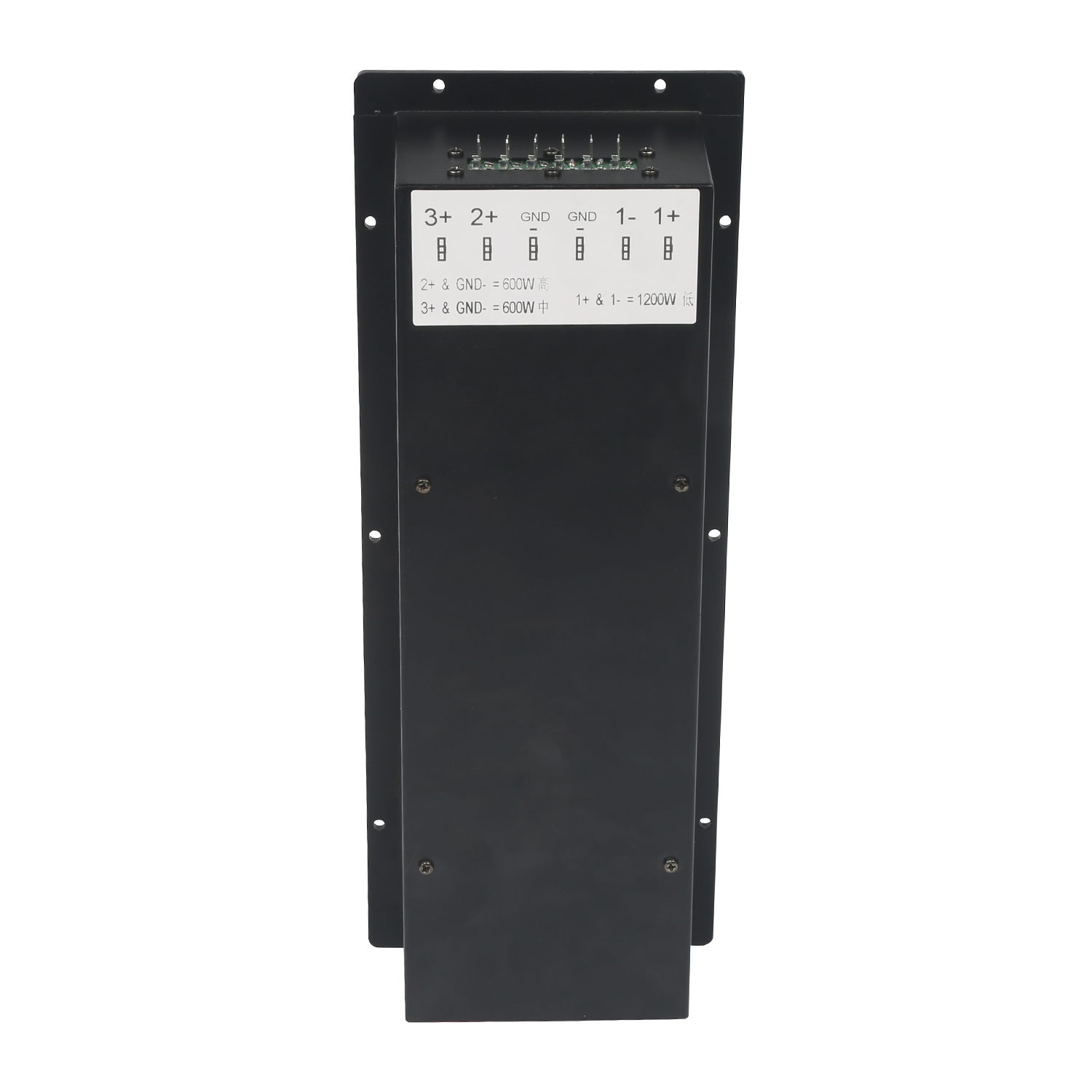

DW series plate amplifier

Name: DW series plate amplifier
Brand: Tinboo audio -Pro audio expert
Availability: InStock
Rating: 5 (1 reviews)

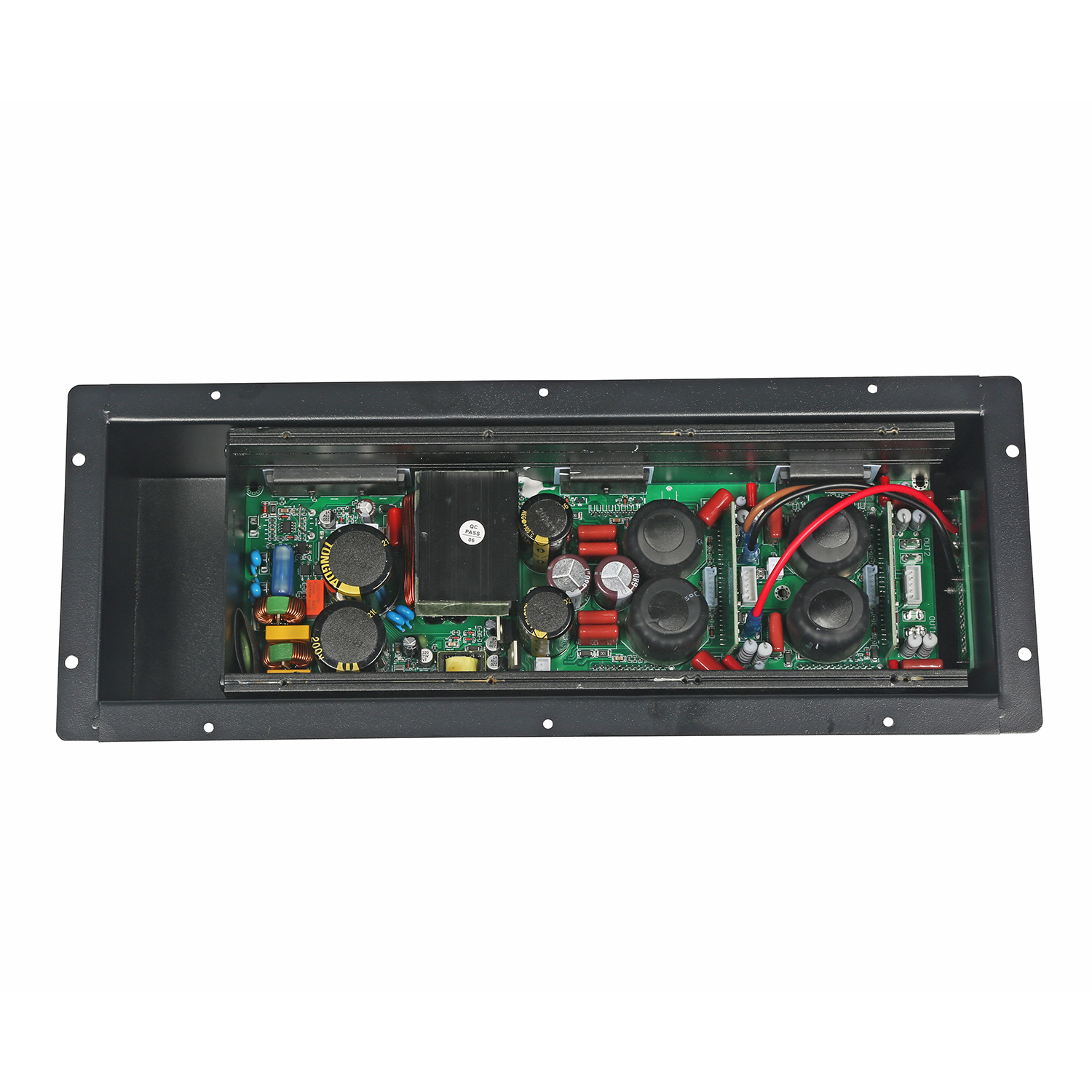

The DW plate amplifier is designed for audio professionals,factories,DIY maker to designed or set their own passive speaker to be self-powered. It combiness with high technology Class D amplifier controlled by DSP module.Really time to process equalization, phase, and time correction,output limitation. Output with 1 ch,2ch,3ch available.

Get A Quote

OVERVIEW

With years of in-depth dedication to the professional audio industry, Audiopeak upholds the core mission of"Restoring the Authenticity of Original Sound, Empowering Every Auditory Feast" . We are committed to delivering high-quality, highly reliable professional audio products and integrated sound reinforcement solutions for global users. Always staying true to our acoustic aspiration, we integrate cutting-edge technology with exquisite craftsmanship. Every procedure, from product R D and component selection to production and testing, is subject to stringent quality control, aiming to deliver the purest and most immersive sound experience.

Specifications
Download
Features

Amplifier section
Model	DW2-600	DW3-600
Amplifier channels	2	2
Output power /ch	2×600W*	3×600W*
Ouput power /ch	2×600W*	3×600W*
Frequency response(±0.5dB)@1W,8 ohms	20Hz-25Khz
Sensitivity(@8ohms)	1.2V
Slew rate(@1 kHz)	50V/us
THD+N	<0.05%	<0.05%
Cross talk(@1kHz)	>75 dB
Damping factor	>800
S/N rate(20 Hz-20 kHz,Aweighted)	>105dB
Power supply	Half-bridge SMPS efficient technology
Main AC	160-240V±10%,50-60 Hz
DSP Section
DSP channels	2in-2out	2in-2out
DSP construction	Built-in ARM Digital processing operation system
AD/DA converters	24-bit,AD/DA,48kHz sampling rate
AD/DA dynamic range	115dB
Memory/Presets	5 pre-set as user applications,30 pre-sets laptop memory
DSP function:	Input channel:Noise gate,gain,Polarity,mute,PEQ Output channel:Crossover,Delay,.Polarity,Mute,Limiter,PEQ
S/N rate	>90dB
pelay	Max delay 8.29ms(sampling rate:48K)
Crossover	Butterworth,Linkwitz-Riley,Bessel,6dB/oct,24dB/oct
Limiters	PEAK,RMS,Truepower,Clipping,Overheat

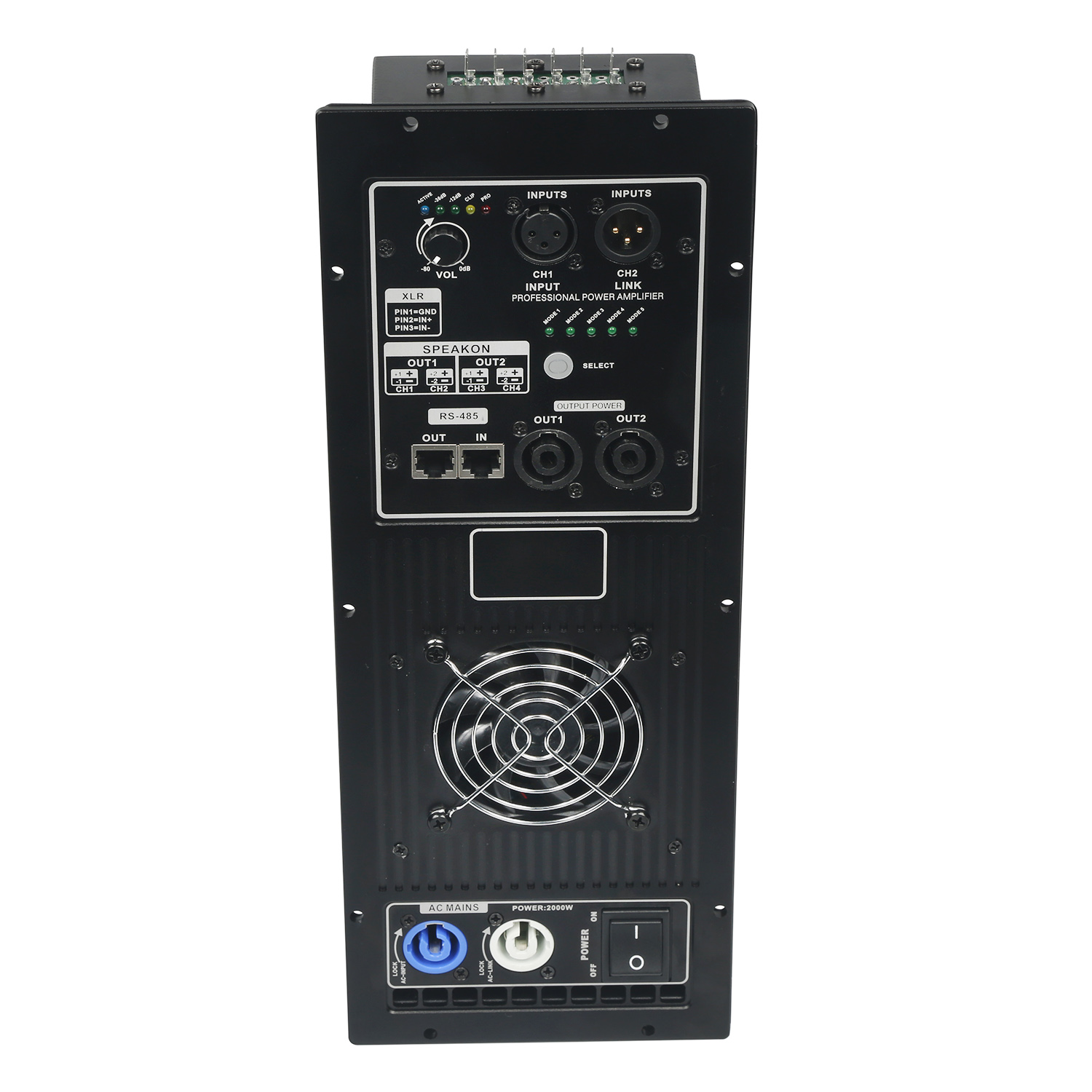

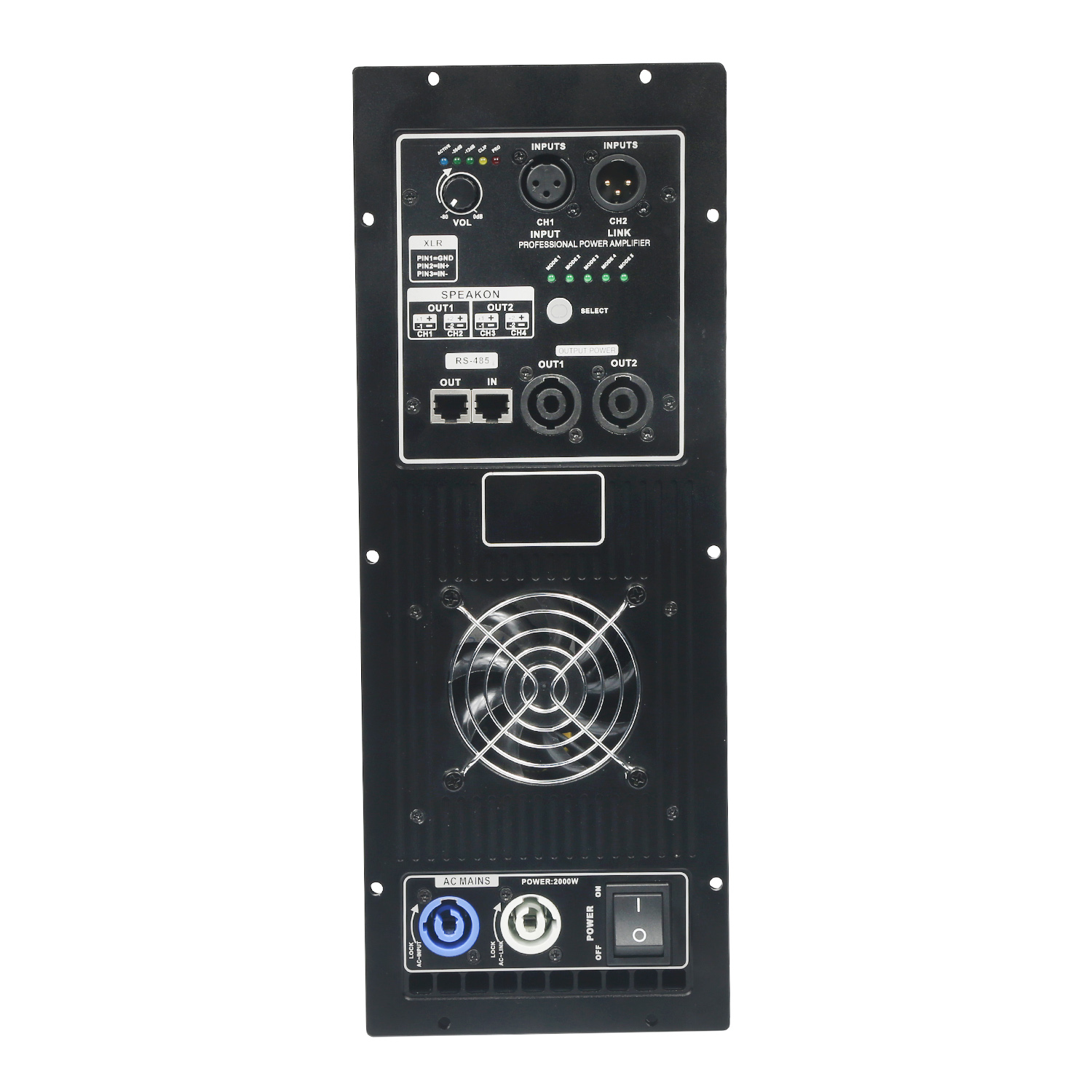

Physical Section
Input connectors	Analog XLR(1in,1Out)	Analog XLR(1in,1Out)
Networkconnectors	2xRS485 ports	2xRS485 ports
Output connectors	2xspeakON NI4	2xspeakON NI4
Dimension WLD(MM)	14237585	14237585
N.Weight(KG)	3	3

Amplifier section
Mode	DW2-1600	DW3-1606	DW3-1612
Amplifier channels	2	3	3
Output power /ch	2×1600W*	1600W+2×600W*	1600W+2×1200W*
Ouput power /ch	2×2000W	2500W+2×600W*	2500W+2×1200W*
Frequency response(±0.5dB)@1W,8 ohms	20Hz-25Khz
Sensitivity(@8ohms)	1.2V
Slew rate(@1kHz)	50V/us
THD+N	<0.05%	<0.05%	<0.05%
Cross talk(@1kHz)	>75 dB
Damping factor	>800
S/N rate(20 Hz-20 kHz,Aweighted)	>105dB
Power supply	Half-bridge SMPS efficient technology
Main AC	160-240V±10%,50-60 Hz
DSP Section
DSP channels	2in-2out	2in-3out	2in-3out
DSP construction	Built-inARM Digital processing operation system
AD/DA converters	24-bit,AD/DA,48kHz samplingrate
AD/DA dynamic range	115dB
Memory/Presets	5 pre-set as user applications,30 pre-sets laptop memory
DSP function:	Input channel:Noise gate,gain,Polarity,mute,PEQ. Output channel:Crossover,Delay,Polarity,Mute,Limiter,PEQ
S/N rate	>90dB
Delay	Max delay 8.29ms(sampling rate:48K)
Crossover	Butterworth,Linkwitz-Riley,Bessel,6dB/oct,24dB/oct
Limiters	PEAK,RMS,Truepower,Clipping,Overheat
Physical Section
Input connectors	Analog XLR(2xin,2xout)	Analog XLR(2xin,2xout)	Analog XLR(2xin,2xout)
Network connectors	2xRS485 ports	2xRS485 ports	2xRS485 ports
Output connectors	2xspeakON NI4	2xspeakON NI4	2xspeakON NI4
DimensionWLD(MM)	255×375×85	255×375×85	255×375×85
N.Weight(KG)	6	6	6.5

123

Features:

Global power supply:110-260V/50-60Hz
1-4chs power amplifier available:1000Wper channel
Bridge available for 1600WMAX for SUBWOOFER
Smart DSP module for setting up:24bit,48Khz 2in 4out.
Friendly using: shortcut for selecting presets
Full protections:Overheat,Overload,DC,0vervoltage.

Applications:

★ 2-ways,3-ways bi-amp mode active loudspeaker

★ Active Sub-woofer

★Active Sub-woofer powered for tops in 2 ways/3ways outputs

★2-ways,3-ways,4-ways requested active line array system.
