| Amplifier section | ||
| Model | DSP4.16 | DSP2.20 |
| Amplifier channels | 4 | 2 |
| Output power/ch | 4ch*1600W | 2ch*2000W |
| Ouput power /ch | 4ch*3000W | 2ch*4000W |
| Frequency response(±0.5dB)@1W,8 ohms | 20Hz-25Khz | |
| Sensitivity(@8ohms) | 1.2V | |
| Slew rate(@1kHz) | 50V/us | |
| THD+N | <0.05% | <0.05% |
| Cross talk(@1kHz) | >75 dB | |
| Damping factor | >400 | |
| S/Nrate(20 Hz-20 kHz,Aweighted) | >105dB | |
| Powersupply | Half-bridge SMPS 160-240V±10%,50-60 Hz | |
| DSP Section | ||
| DSP channels | 2in-4out | 2in-2out |
| AD/DA conyerters | 24-bit,2-△AD/DA,48kHz sampling rate | |
| AD/DA dynamic range | 115dB | |
| Memory/Presets | 5 pre-set as user applications,30 pre-sets laptop memory | |
| DSP function | ADIAudio DSP,Input channel:Noise gate,gain,phase,mute,4 bands of PEQ. Output channel:LPF/HPF,Delay,Phase,Mute,Limiter,9 bands of PEQ Max delay 8.29ms(sampling rate:48K) |
|
| S/N rate | >90dB | |
| Crossover | Butterworth,Linkwitz-Riley,Bessel,6dB/oct,24dB/oct | |
| Physical Section | ||

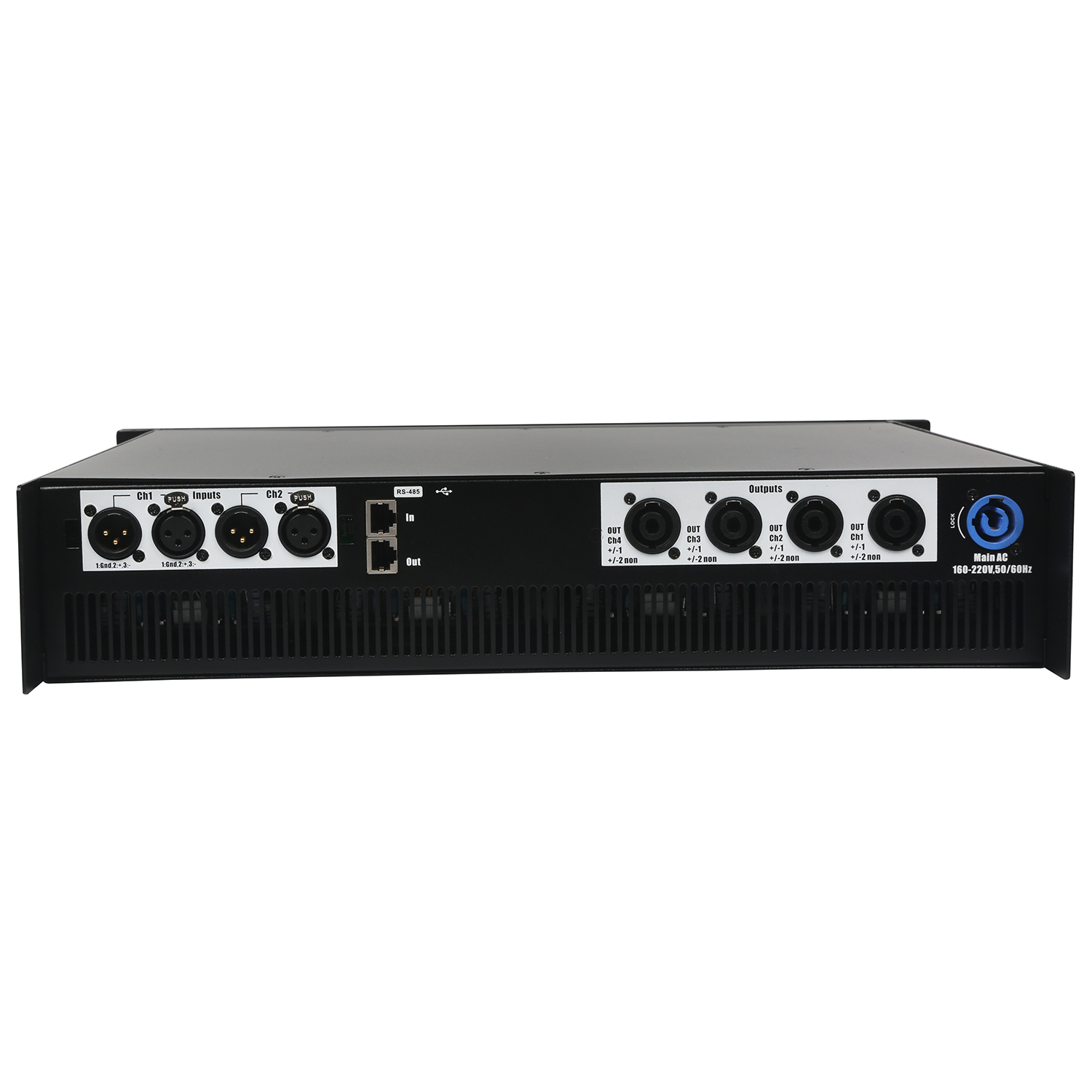

| Input connectors | Analog input(2*XLR-F,Link 2*XLR-M) | Analog input(2*XLR-F,Link 2*XLR-M) |
| Network connectors | 2x RS485 port | 2xRS485 port |
| Output connectors | 4XspeakON NI4 | 2xspeakON NI4 |
| Dimension W*L*D(MM) | 483*390*88 | 483*390*88 |
| N.Weight(KG) | 13 | 12 |
Features

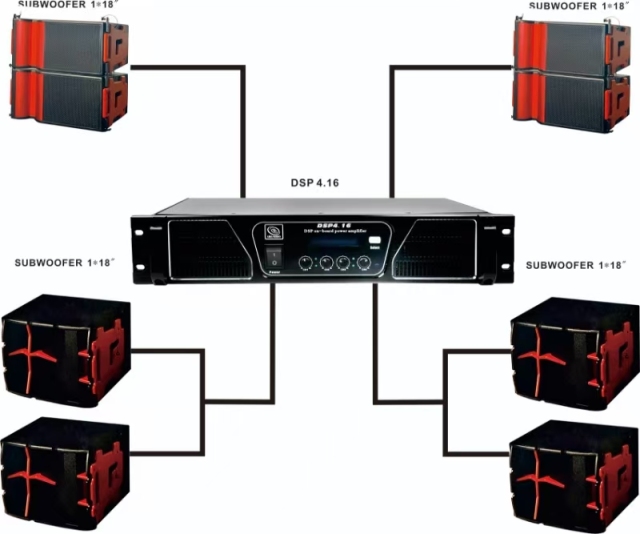

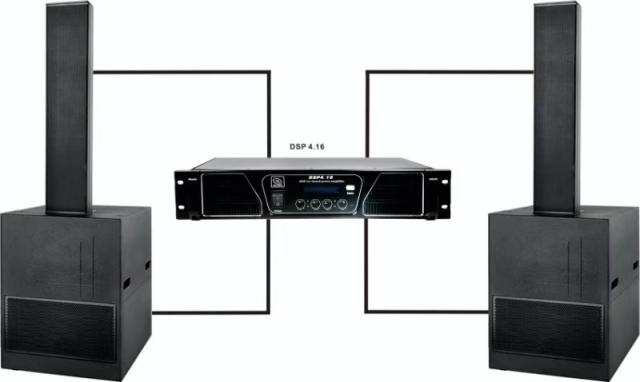

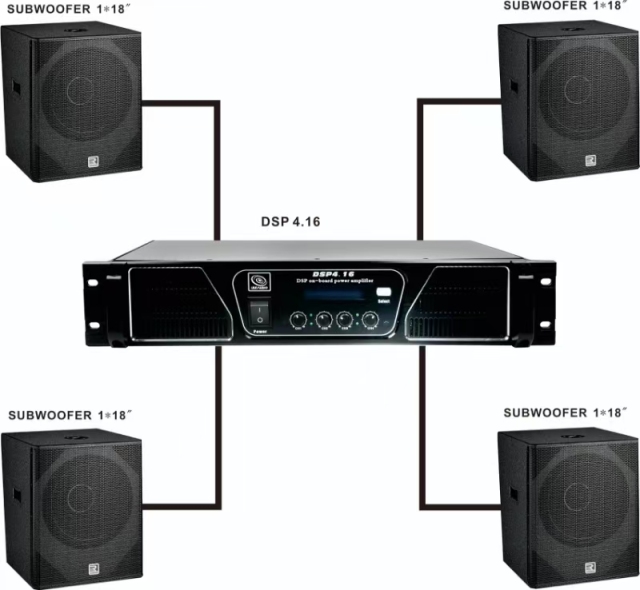

Applications
