Home > All Collections > Electronics > Professional amplifier > DPA serier power amplifier

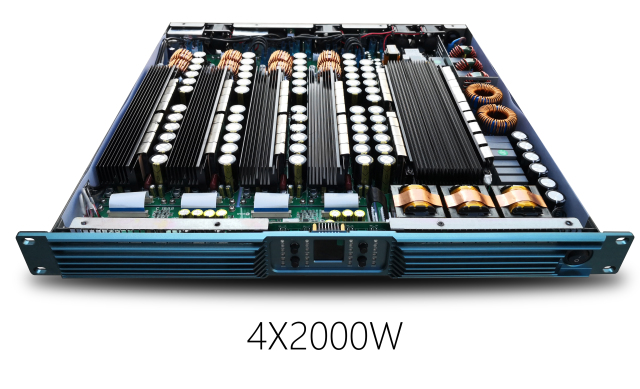

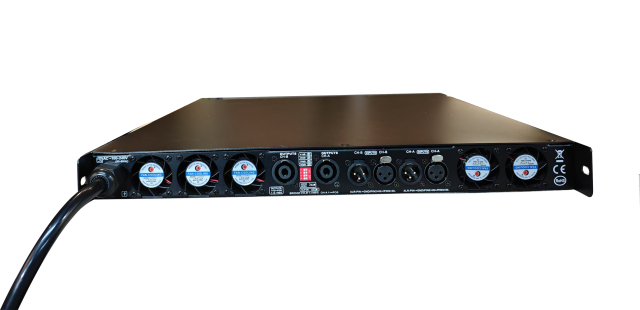

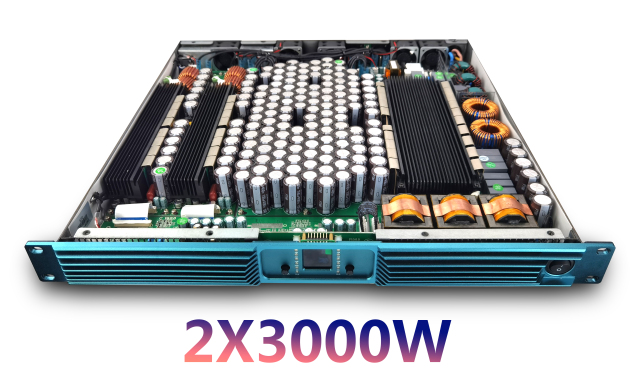

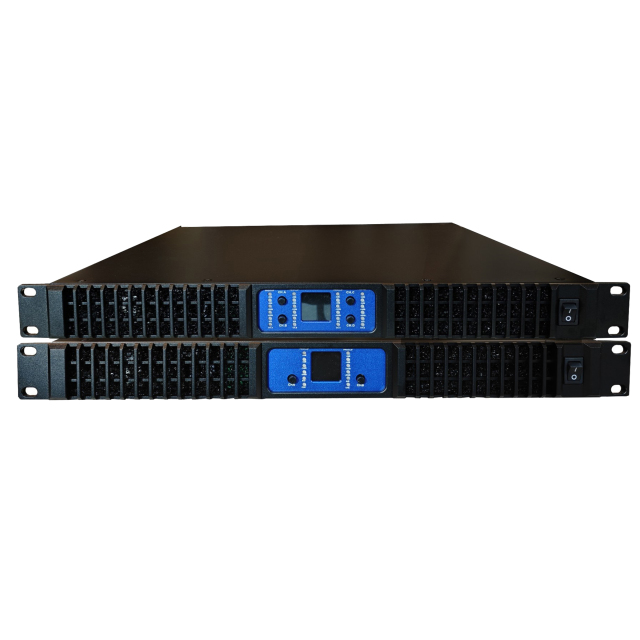

DPA serier power amplifier

Name: DPA serier power amplifier
Brand: Tinboo audio -Pro audio expert
Availability: InStock
Rating: 5 (1 reviews)

Features

Active power factor corrector(PFC):85V-260V/50-60Hz

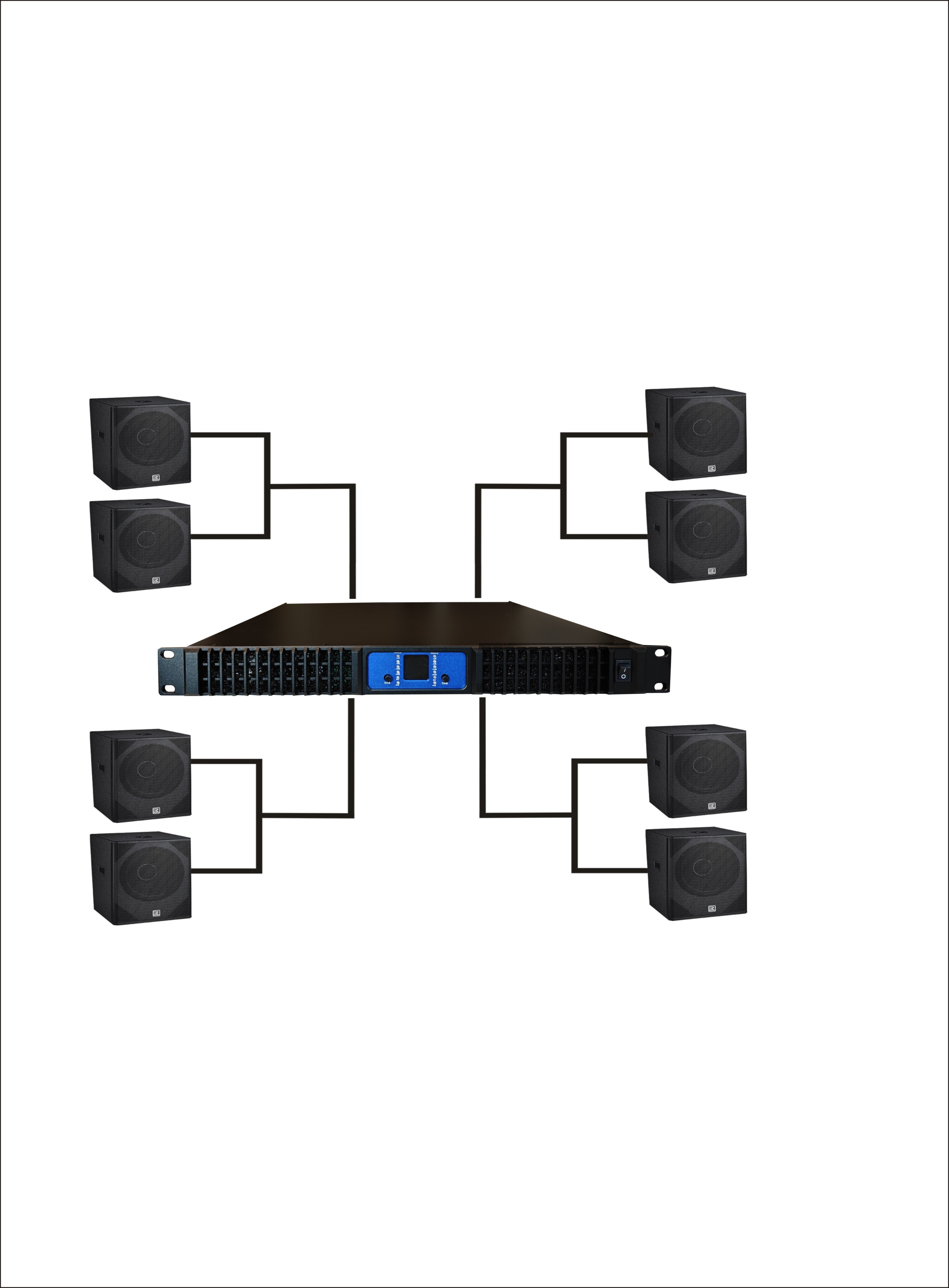

2/4chs power amplifier with high power outputs:1500W-4000W

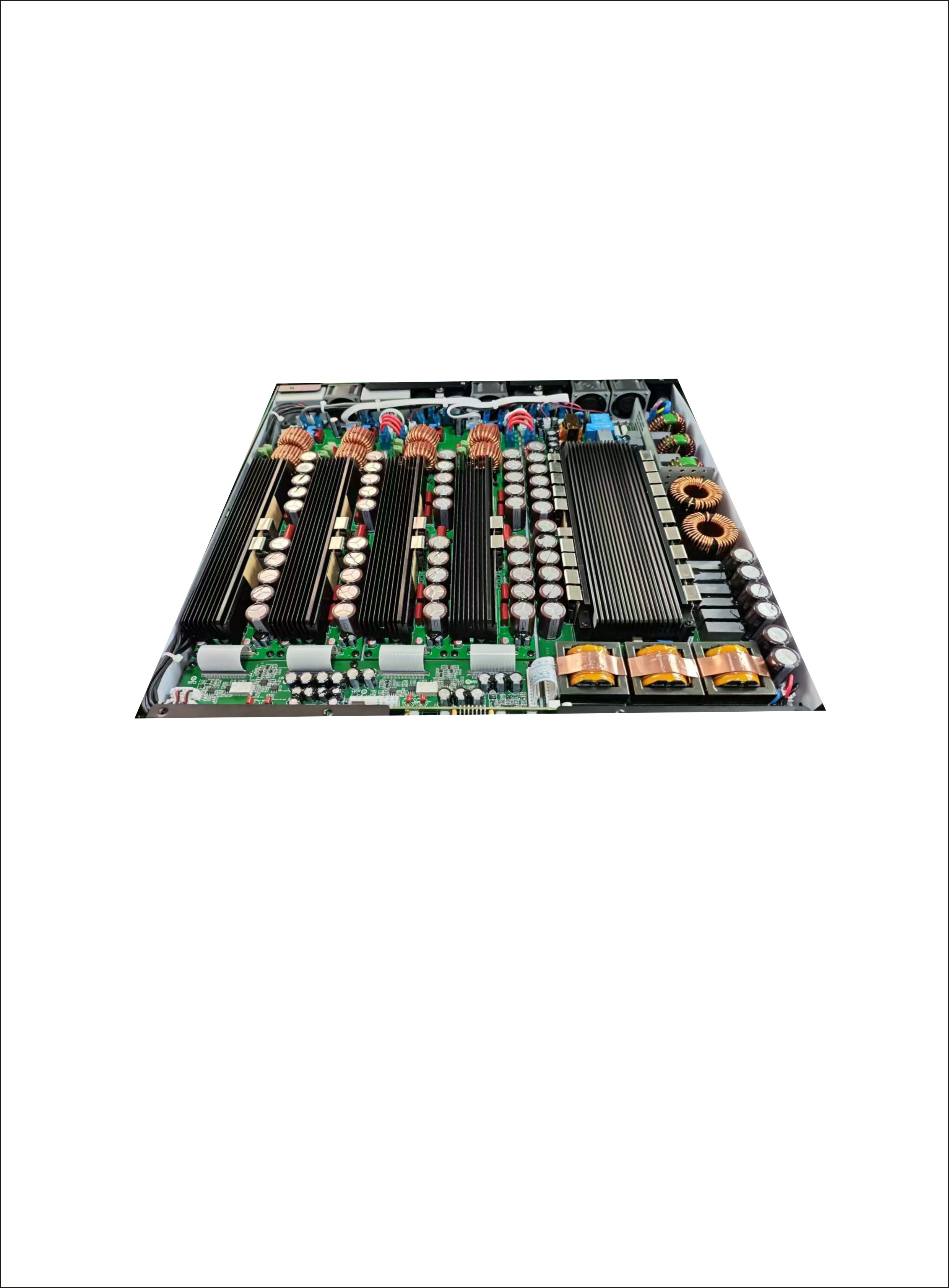

Pure Class D amplifier with efficiency over 95%
Compact design for 1U chassis:12Kg only
Less hot consuption:<60 Celsius
Full protections:Overheat,Overload,DC,Overvoltage.

Applications

Small to large-sized touring and installed applications
Pub &restaurant.entertainment outlet
Theatres and live clubs
Houses of worship
Emergency evacuation
Excellent voice amplification, live music reproduction System

Get A Quote

OVERVIEW

With years of in-depth dedication to the professional audio industry, Audiopeak upholds the core mission of"Restoring the Authenticity of Original Sound, Empowering Every Auditory Feast" . We are committed to delivering high-quality, highly reliable professional audio products and integrated sound reinforcement solutions for global users. Always staying true to our acoustic aspiration, we integrate cutting-edge technology with exquisite craftsmanship. Every procedure, from product R D and component selection to production and testing, is subject to stringent quality control, aiming to deliver the purest and most immersive sound experience.

Specifications
Download

Model	DPA4.16	DPA2.30	DPA4.20	DPA2.40
STEREO MODE:80	4x1600W	2x3000W	4x2000W	2x4000W
STEREO MODE:40	4x2600W	2x6000W	4x3400W	2x7800W
STEREO MODE:20	4x3500W	2x7500W	4x4760W	2x8500W
BRIDGE MODE:80	2*5200W	13000W	2*6800W	15600W
Frequency Response	20 Hz-20 kHz(1W@80,±0.5dB)
Rated power demand	100-240V±10%,50/60 Hz
THD	<0.5%from 1Wto full power(Typical value<0.05%)
Crosstalk	>70dB@1 kHz
Frequency response	20Hz-20Khz(±0.5dB)
Input impedance	Balance 20kohm ,unbalance10kohm
Damping Factor	500
Signalto noise ratio	>110 dBA(20Hz-20 kHz,Aweighted)
Input Impedance	10 kQ balanced
Protection	over heat/thermal output power control/long term output power control output short-circuit/overload protection/DC protection
Dimension	482x44x460mm
Net weight(KG)	12	13	13	14

123

The Sound That Defines a Successful Show

In a real live event,a sound system must do more than simply be loud. It needs to deliver:Clear and natural vocalsEven sound coverage across the audienceStrong and controlled low frequency performanceStable output for long working hoursThat is the value of a professional audio system. Whether for concerts, music festivals, touring events, or large-scale performances,consistent and controlled sound coverage is the key to a successful show.

Where Sound Becomes Experience

When the lights come onand the music begins, the audience is not just listening to sound —they are feeling the energy. Clear vocals that reach every corner,rich mids that bring music to life,and deep, powerful bass that hits the crowd with impact. A professional sound system does more than play music.It creates the atmosphere, drives the emotion,and turns a performance into a real experience. We do not just provide audio equipment.We provide sound solutions that make the whole event come alive.
