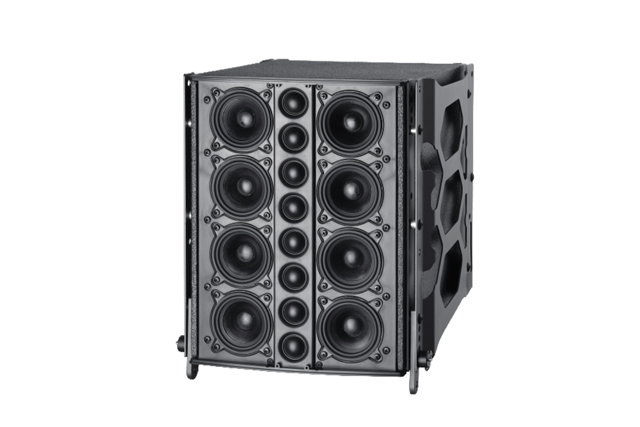

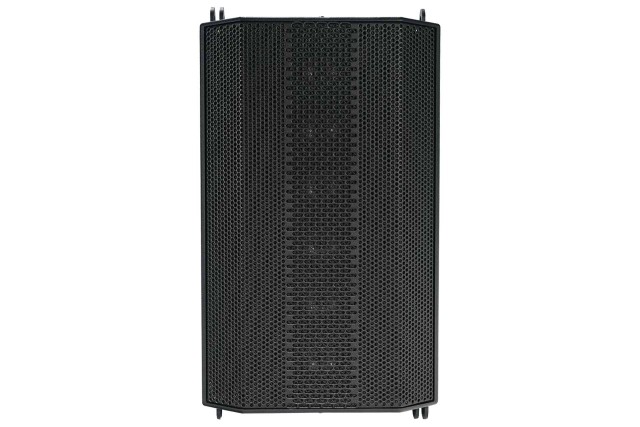

Name: Tran-308 line array full range speaker modules
Brand: Tinboo audio -Pro audio expert
Availability: InStock
Rating: 5 (1 reviews)

Tran-308 line array full range speaker modules are desinged adopts unique design, configuration of 8x3" LF, 8 x 1" HF , 800w RMS, 128 dB, Top engineering D class amplifier with DSP , which makes the speaker with wider frequency response, larger near-field coverage and smoother sound，Perfect choice for all kind of venues and rental applications.

Get A Quote

OVERVIEW

With years of in-depth dedication to the professional audio industry, Audiopeak upholds the core mission of"Restoring the Authenticity of Original Sound, Empowering Every Auditory Feast" . We are committed to delivering high-quality, highly reliable professional audio products and integrated sound reinforcement solutions for global users. Always staying true to our acoustic aspiration, we integrate cutting-edge technology with exquisite craftsmanship. Every procedure, from product R D and component selection to production and testing, is subject to stringent quality control, aiming to deliver the purest and most immersive sound experience.

Specifications
Download

Type	Line Array
HF Driver	Customized 8×1”driver
LF Driver	Customized 8*3” driver
Frequency Response(-10dB)	120Hz-20kHz
Horizontal Coverage	120°
Vertical Coverage	15°
Impedance Power	800W
Maximum Calculated SPL/1M (Continuous/Peak)	98dB/128dB
Rated Impedance	8Ω
Crossover Mode	Passive Crossover
Input Connectors	Speakon 4Pin
Cabinet Material	Wood+Plastic
Adjusted Angles	0°，2°，4°，6°，8°，10°，12°
Coating	Durable Polyurea Coating
Cabinet Color	Black is the default color. Contact Audiocenter for customization
Grille	Iron mesh
Included Accessories	Wall-mount Bracket
Optional Accessories	Pole Mount Bracket，Wall Mounted Bracket，Hanging Frame
Speaker Dimension(W×H×D)	275×385×385mm
Net Weight	12kg

123

The Sound That Defines a Successful Show

In a real live event,a sound system must do more than simply be loud. It needs to deliver:Clear and natural vocalsEven sound coverage across the audienceStrong and controlled low frequency performanceStable output for long working hoursThat is the value of a professional audio system. Whether for concerts, music festivals, touring events, or large-scale performances,consistent and controlled sound coverage is the key to a successful show.

Where Sound Becomes Experience

When the lights come onand the music begins, the audience is not just listening to sound —they are feeling the energy. Clear vocals that reach every corner,rich mids that bring music to life,and deep, powerful bass that hits the crowd with impact. A professional sound system does more than play music.It creates the atmosphere, drives the emotion,and turns a performance into a real experience. We do not just provide audio equipment.We provide sound solutions that make the whole event come alive.
