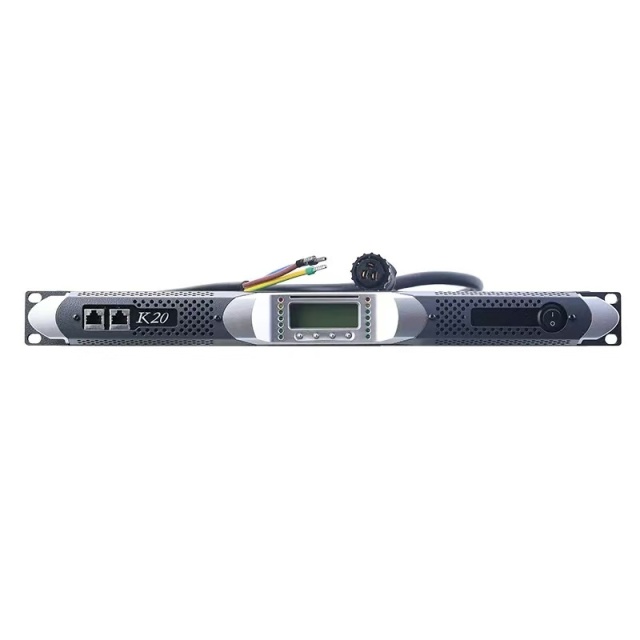

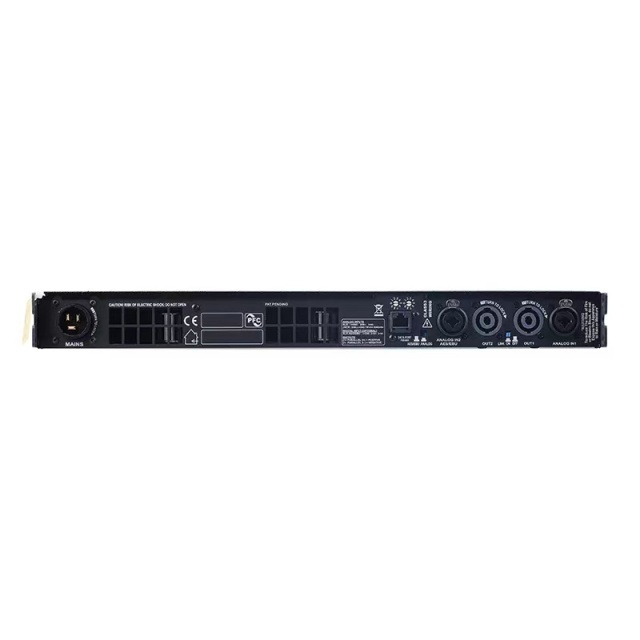

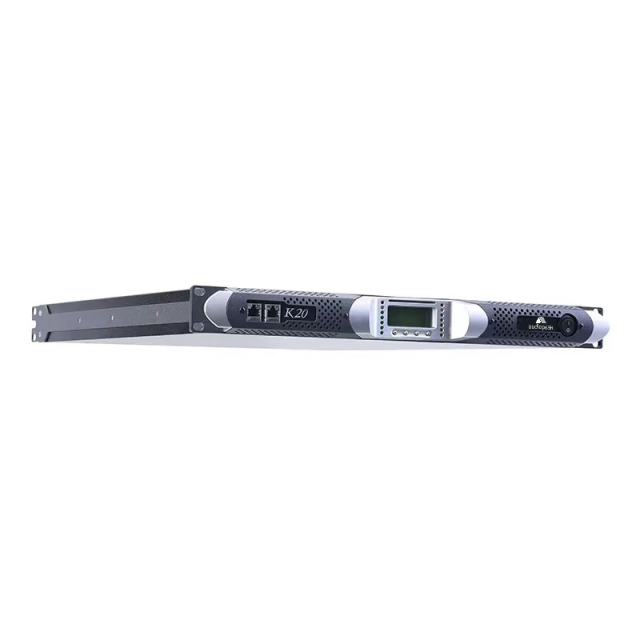

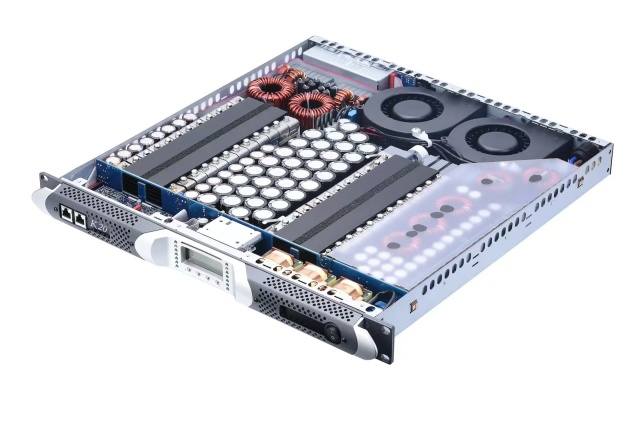

K20 compact power amplifier

Name: K20 compact power amplifier
Brand: Tinboo audio -Pro audio expert
Availability: InStock
Rating: 5 (1 reviews)

Features :
• Global adaptive wide voltage power supply (90V-264V)
• Class D amplifier with PFC function
• Digital gain reduction control
• Temperature controlled continuous variable speed fan, air flow from front to back
• Temperature forecast, historical temperature display on LCD screen
• Comprehensive protection function
Such as: overheating, AC, DC, short circuit, overload, clipping limiter, long-term amplifier, etc.
• LCD matrix interactive display
• Comprehensive user-friendly front panel display menu
• Built-in disableable clipping limiter for each channel
• Each channel has a gate gating that can be disabled
• User selectable gain/sensitivity
• User-selectable maximum output power for each channel
• User-selectable maximum power supply current consumption
• The user can choose a password to lock

Get A Quote

OVERVIEW

With years of in-depth dedication to the professional audio industry, Audiopeak upholds the core mission of"Restoring the Authenticity of Original Sound, Empowering Every Auditory Feast" . We are committed to delivering high-quality, highly reliable professional audio products and integrated sound reinforcement solutions for global users. Always staying true to our acoustic aspiration, we integrate cutting-edge technology with exquisite craftsmanship. Every procedure, from product R D and component selection to production and testing, is subject to stringent quality control, aiming to deliver the purest and most immersive sound experience.

Specifications
Download

Specification :
Maximum output power (EIAJ test standard): stereo
2*2700W/8Ω, 2*5200W/4Ω, 2*9000W/2Ω; bridge 10000W/8Ω, bridge 18000W/4Ω
Working voltage: 90V-264V
Gain: 26dB\29dB\32dB\35dB
Input sensitivity: 7.37V/5.22V/3.68V/2.62V
Frequency response: 20Hz-20kHz(±0.5dB)@1W,8Ω
S/N ratio: >110dBA(20Hz-20kHz, A weighted)
Crosstalk isolation: >66dB@1kHz
THD＋N: <0.3% from 1W to full power
DIM100: <0.3% from 1W to full power
Input impedance: 10kΩ balanced
Conversion rate: 50V/μs@8Ω, input filter bypassed
Damping Factor : >5000@20-200Hz
Size (L*H*W): 483mm*44.5mm*475mm
Weight: 13.5kg
