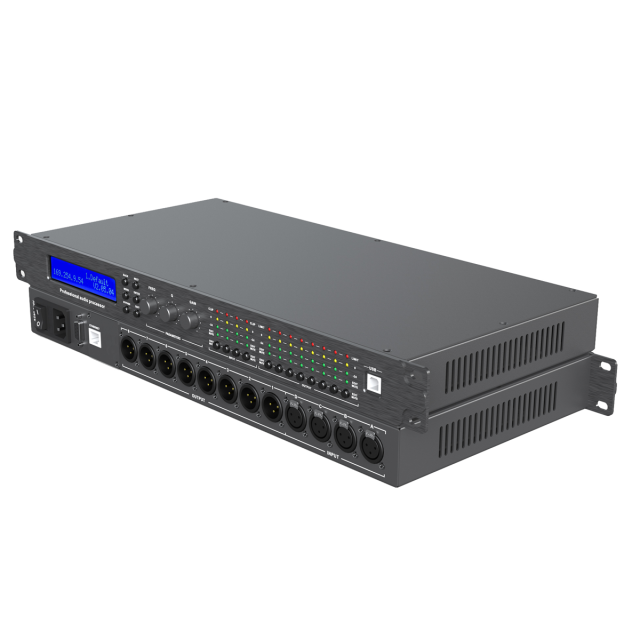

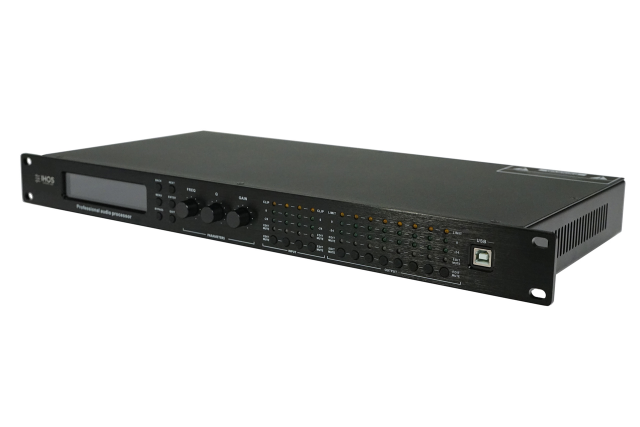

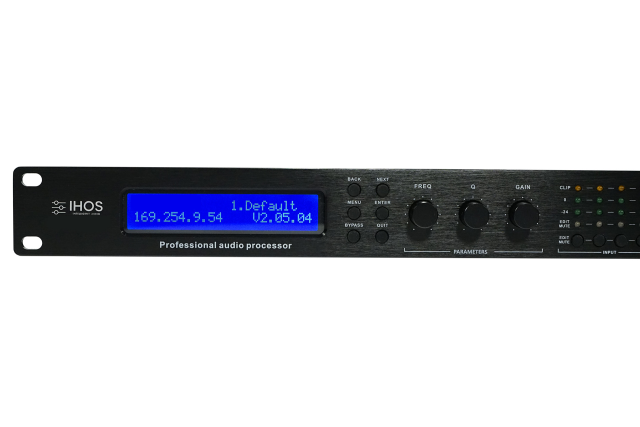

DPL480 Speaker management

Name: DPL480 Speaker management
Brand: Tinboo audio -Pro audio expert
Availability: InStock
Rating: 5 (1 reviews)

Digital speaker management system, 4 input, 8 outputs full matrix mixing, 32 bit converters with 96khz sampling, USB Connection for PC or RJ45 LAN Connector for Long Distance Control, ? programmable PC Software, Low-Shelving Equalizer, Hi-Shelving Equalizer, Lo-Cut filter, Hi-Cut filter, All-Pass filter, Compressor / Limiter 6 Digital Compressors / Limiters per Output, state-of-the-art signal processing.

Get A Quote

OVERVIEW

With years of in-depth dedication to the professional audio industry, Audiopeak upholds the core mission of"Restoring the Authenticity of Original Sound, Empowering Every Auditory Feast" . We are committed to delivering high-quality, highly reliable professional audio products and integrated sound reinforcement solutions for global users. Always staying true to our acoustic aspiration, we integrate cutting-edge technology with exquisite craftsmanship. Every procedure, from product R D and component selection to production and testing, is subject to stringent quality control, aiming to deliver the purest and most immersive sound experience.

Specifications
Download

Professional speaker processor, with variable DSP functions, and integrated compressors, limiters, frequency dividers, dynamic EQ, delayers, equalizers, input and output with FIR phase correction, and audio mixers.

Suitable for stadium, performances, auditoriums, halls, and conference rooms.

Technical Details

DSPMODULE

Signal processing: ADI SHARC 21489
Audio system delay: 2.8 ms
D/A conversion: 24-bit
Sampling Rate: 96kHz

ANALOG AUDIO INPUTS AND OUTPUTS

Input channel: 4 balanced inputs.Line level.
Audio interface: Cannon male and female
Input resistance: 22kΩ
Maximum input level: 16dBu/Line
Output channel: 8x balanced outputs, Line level
Output impedance: 150Ω

AUDIO PERFORMANCE SPECIFICATIONS

Frequency response curve: 20Hz～40kHz(±0.5dB)/Line
Noise floor: 20Hz～20kHz,A-wt,-93dBu
THD+N: -90dB(@0dBu,1kHz,A-wt)/Line
SNR: 108dB(@16dBu,1kHz,A-wt)/Line

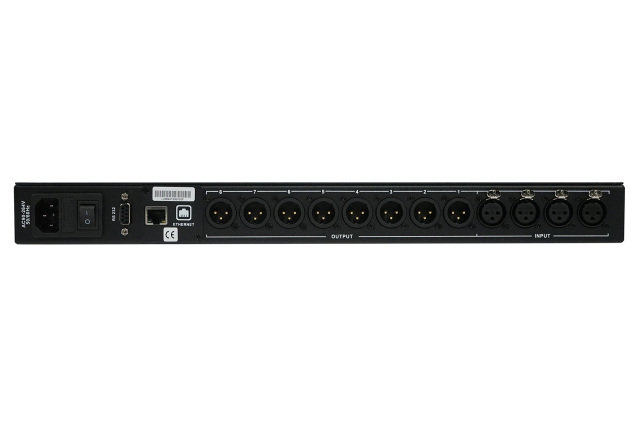

COMMUNICATION PORTS AND INDICATORS

USB: Micro-B type
Serial port
RJ-45, for TCP/IP network connection

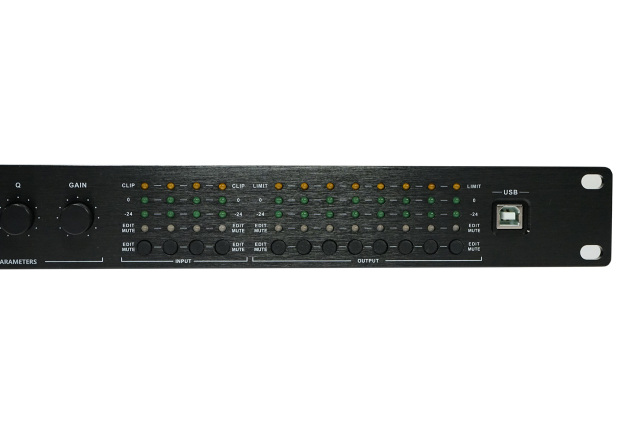

LED Indicators: CLIP, LEVEL, EDIT, MUTE

Physical Dimensions / Electrical characteristics

Power supply range: AC90V～264V50/60Hz
Operating temperature -20℃～80℃
Product dimensions: 483mm×226mm×44.5mm
Packed dimension: 540mm×345mm×77mm
Net weight: 3.2kg
Packed weight 4.1kg
