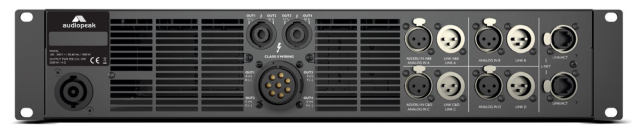

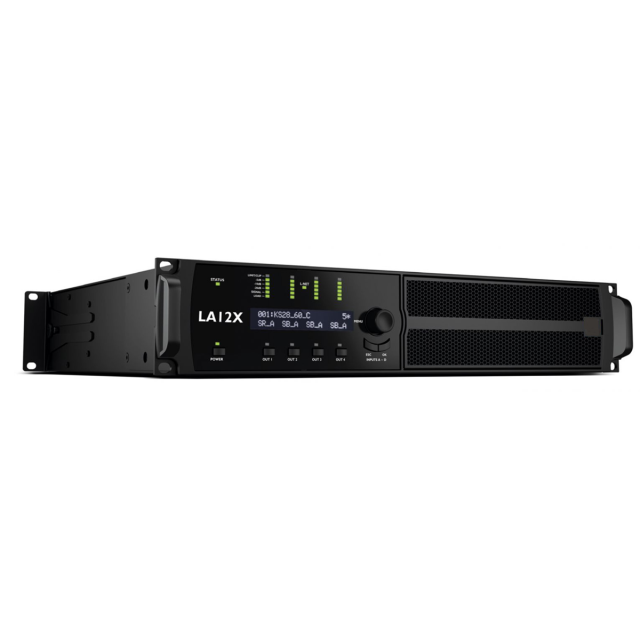

Name: AUDIOPEAK 12X is a four-channel amplified controller designed to power the largest loudspeakers,line array K2,K3,KARA 2
Brand: Tinboo audio -Pro audio expert
Availability: InStock
Rating: 5 (1 reviews)

12000 W with long power retention time
Universal Switching Power Supply SMPS with Power Factor Correction
High level of tolerance to unstable power grid operation (100-240 V)
Extensive DSP resources
Architecture: 4 inputs × 4 outputs for passive systems
AVB Bridge and TSN-ready functionality

Get A Quote

OVERVIEW

With years of in-depth dedication to the professional audio industry, Audiopeak upholds the core mission of"Restoring the Authenticity of Original Sound, Empowering Every Auditory Feast" . We are committed to delivering high-quality, highly reliable professional audio products and integrated sound reinforcement solutions for global users. Always staying true to our acoustic aspiration, we integrate cutting-edge technology with exquisite craftsmanship. Every procedure, from product R D and component selection to production and testing, is subject to stringent quality control, aiming to deliver the purest and most immersive sound experience.

Specifications
Download

AUDIO FEATURES
RMS Power (Full-Range)	4x 1400 W RMS at 8 Ohms
	4x 2600 W RMS at 4 Ohms
	4x 3300 W RMS at 2.7 Ohms
Frequency response	20-20000Hz (±0.1dB)
Crosstalk between inputs	>85dB
Total Harmonic Distortion (THD)	<0.05% at 60W, 8Ω
Total Harmonic Distortion (THD)	<0.1% at 120W, 4Ω
Power supply	100-240V ~ ±10%
Power supply	50-60Hz
Power mode	PFC
Work class	D
A/D converter	4 cascaded 24-bit analog/digital converters (130 dB dynamic range)
Cooling	Variable Speed Fans
Security	Over and under voltage / over temperature / overcurrent (fuse protection, and inrush current protection)
Security	Power outputs - Over current / DC / short circuit / rail over and under voltage / over temperature
PHYSICAL FEATURES
Rack height 19"	2U
Net Weight	14.5kg
Dimensions (W x H x D)	483 x 88 x 454.7 mm

123

The Sound That Defines a Successful Show

In a real live event,a sound system must do more than simply be loud. It needs to deliver:Clear and natural vocalsEven sound coverage across the audienceStrong and controlled low frequency performanceStable output for long working hoursThat is the value of a professional audio system. Whether for concerts, music festivals, touring events, or large-scale performances,consistent and controlled sound coverage is the key to a successful show.

Where Sound Becomes Experience

When the lights come onand the music begins, the audience is not just listening to sound —they are feeling the energy. Clear vocals that reach every corner,rich mids that bring music to life,and deep, powerful bass that hits the crowd with impact. A professional sound system does more than play music.It creates the atmosphere, drives the emotion,and turns a performance into a real experience. We do not just provide audio equipment.We provide sound solutions that make the whole event come alive.
